SPECIFICATIONS
Back lighting: On/off White LED
Brand Name: LUCKYLAKER
Depth Capability of FFC1108-1: 328 feet( 100 m)
Depth Capability of FFCW1108-1: 130feet(45m)
Detecting Range: 0.6-183 Meter
Display: 2inch TN/ANTI-UV LCD
Hign-concerned Chemical: None
Language: English
Manual Approved Language: English&Russian&German&Japanese
Origin: Mainland China
Power Input: AAA
Power Source: No. 7 Battery
Power requirement: 4* AAA batteries

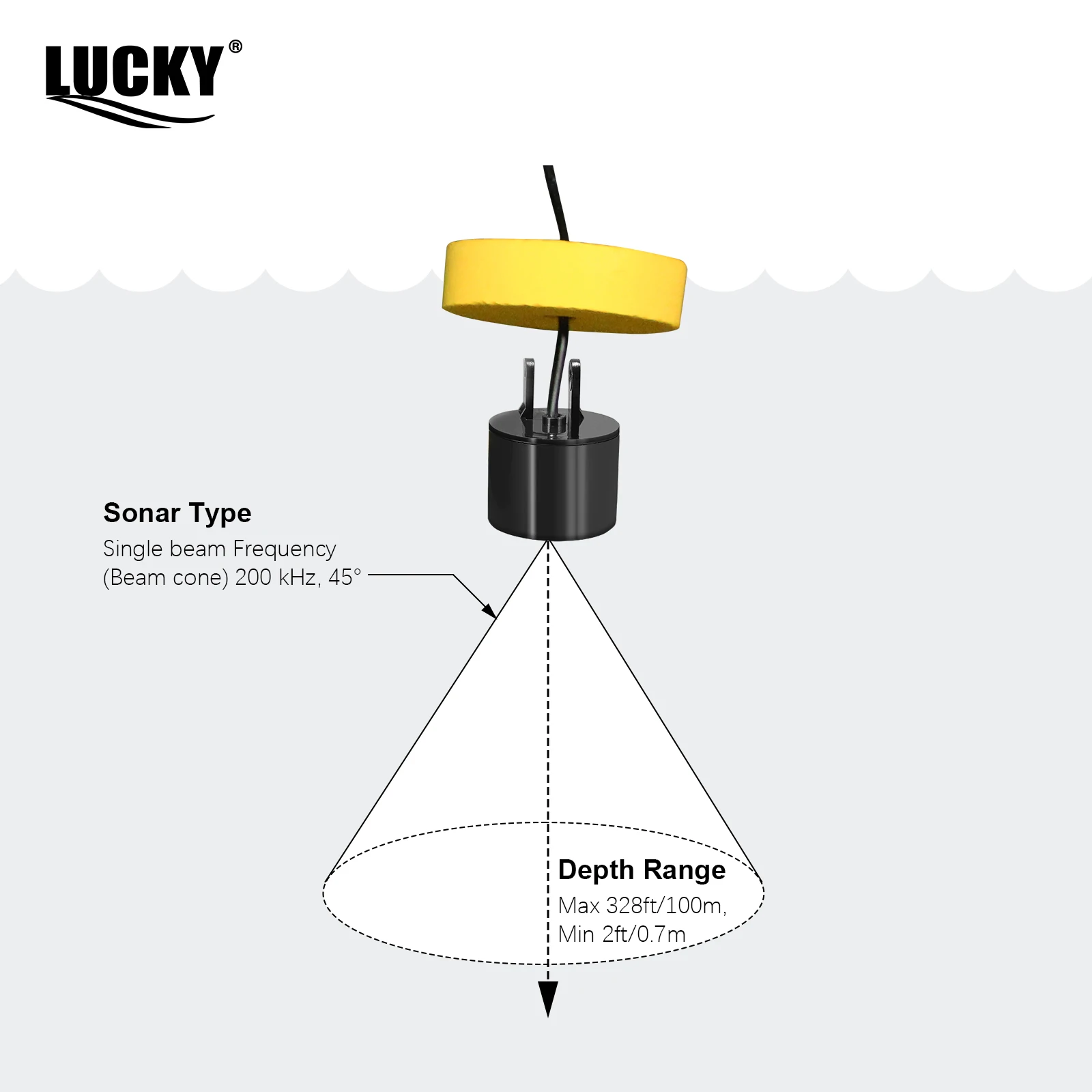

Sonar Coverage: FFC1108-1:45 degrees, FFCW1108-1:90 degrees,45 degrees beam angle in 200Khz of FFC1108-1
Sonar Frequency: Cable: 200Khz
Waterproof design: Level-4 (spray-water-proof)
PRODUCT SPECIFICATION OF FFC1108-1:
1) Display: 2inch TN/ANTI-UV LCD
2) Back lighting: White LED
3) Depth Capability: 328feet(100m)
4) Power Requirement: 4xAAA alkaline batteries（not included）
5) Waterproof design: level-4 (spray-water-proof)
6) Show water depth, fish location, and bottom grass & rock
7) User selectable sensitivity,depth units, and fish alarm setting
8) Operational Temperature: 14degF to 122degF(-10degC to 50degC)

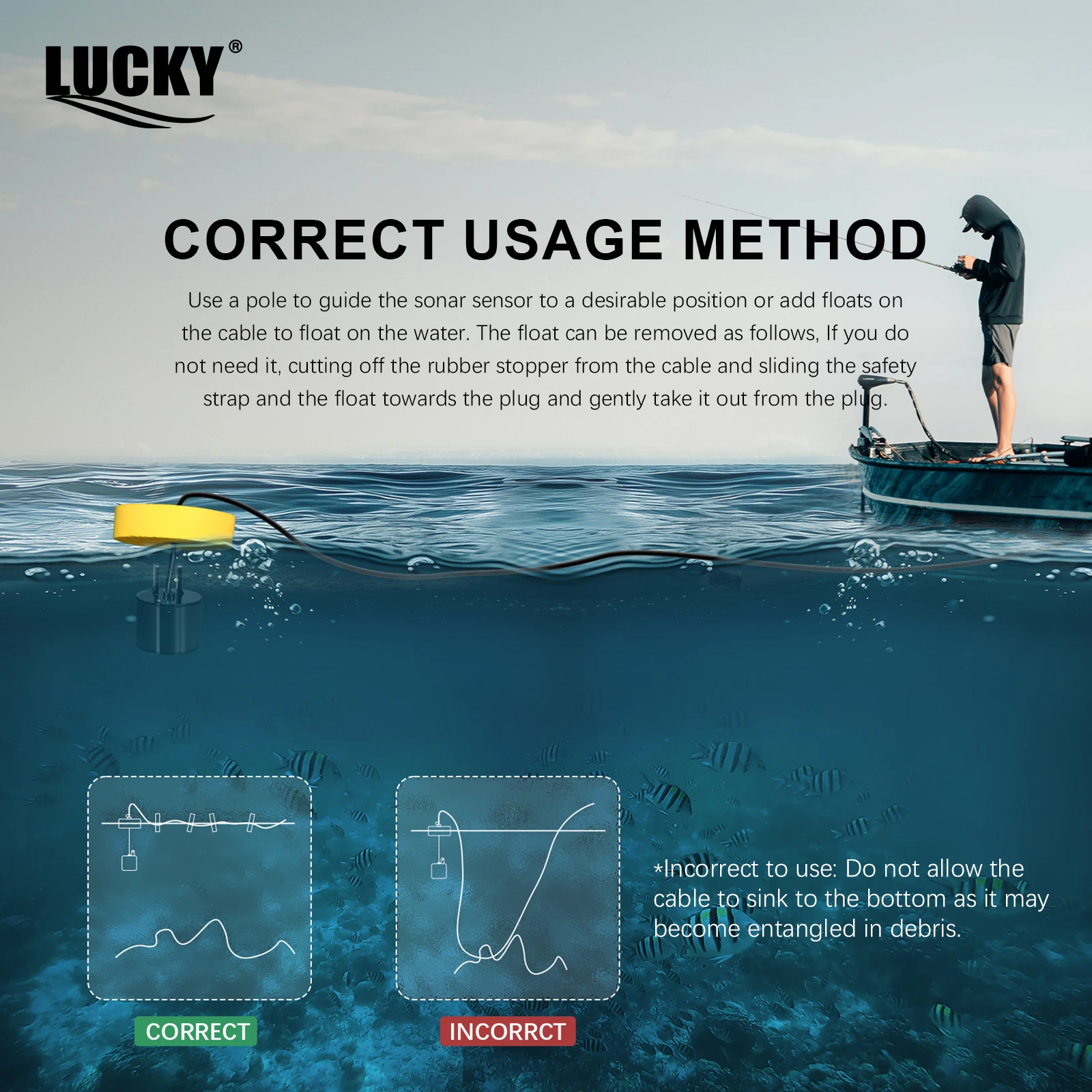

1.Adjust the sensor float to be at least 18 centimeters away from the sensor.
Detection depth of 100m/328ft

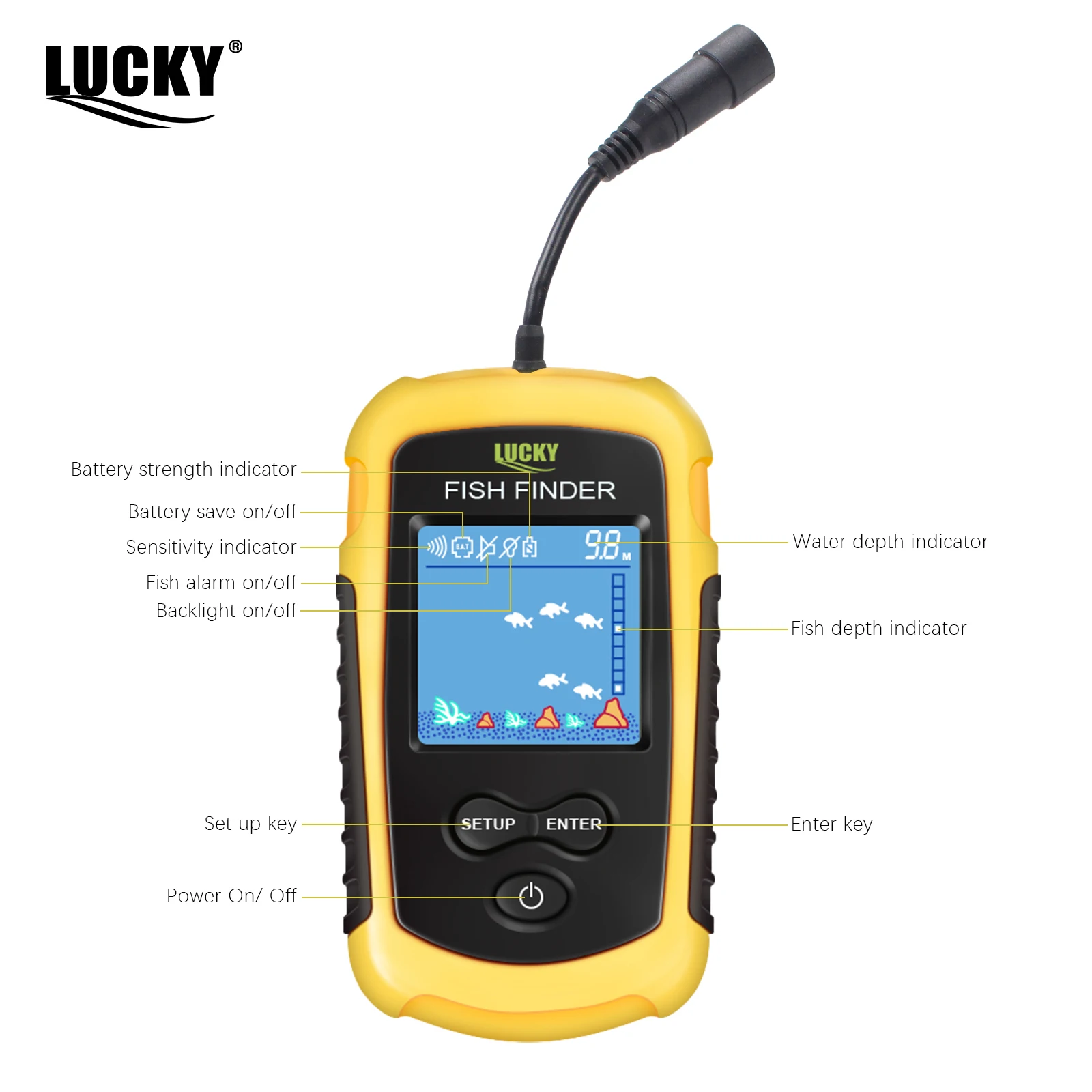

1.Battery strength indicator
1.Float
Find fish in lakes, ponds and rivers. Cast from dock, shore, bank or kayak.through a receiver.
1) Display: 2 inch LCDDifferent fishing ways:
1.Night Fishing Probe
2.Turbid Water Probe
3.Ice Fishing Probe
Attention:
1.Kindly remind that FFC1108-1 has only wired mode, and you cannot match the sensor and monitor randomly.
2.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please use fish finder in outdoor deep water.
3.The monitor cannot display the size of the fish.
4.Manual:English/German/Russian/Japanese
